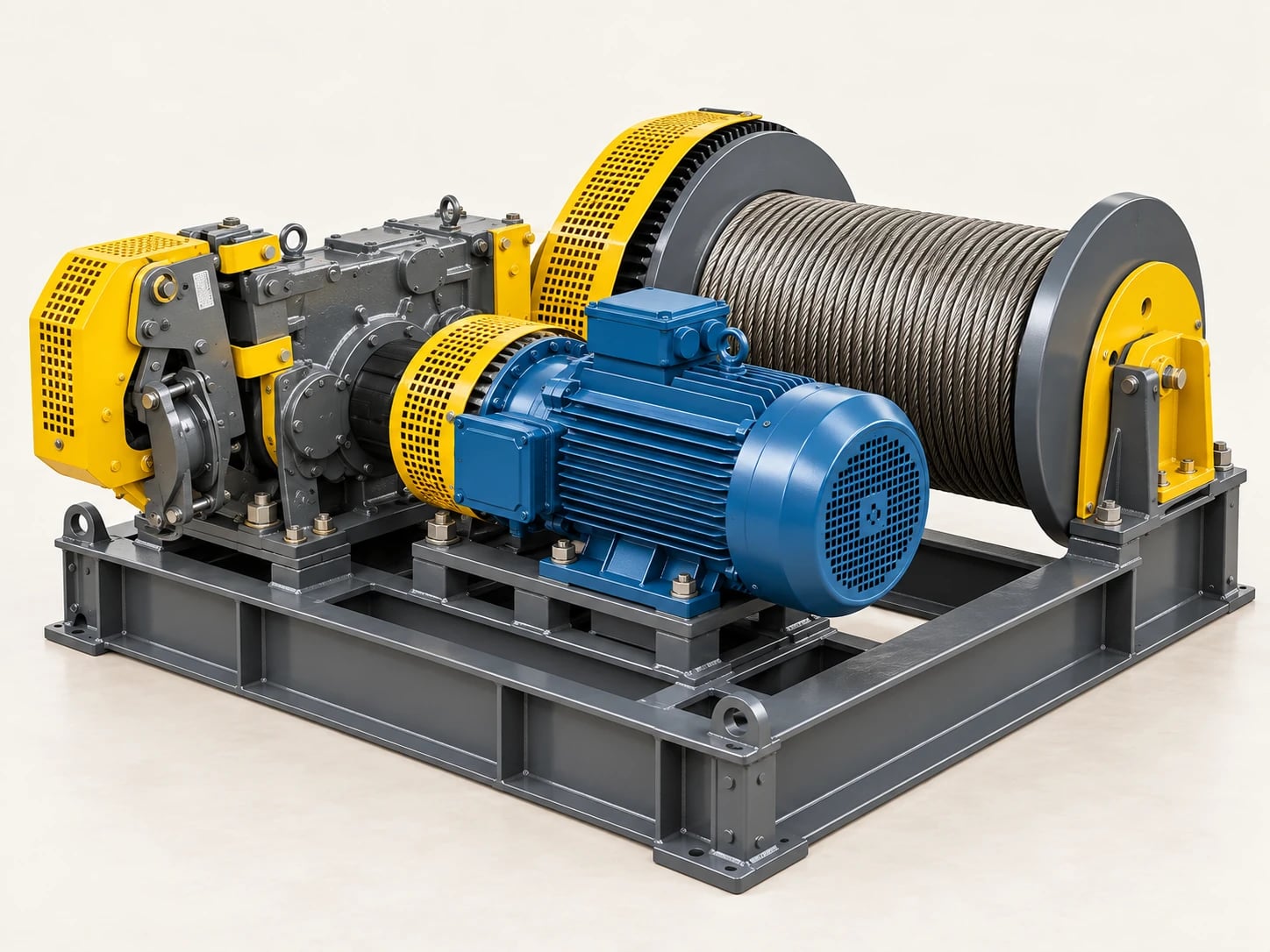

2 Tonne Electric Winch Specifications
The figures below describe typical industry specifications for this class of equipment rather than a single fixed model. Use them to scope a requirement, then confirm exact figures against the supplied unit before purchase.
| Specification | Typical value |
|---|---|
| Rated line pull (first layer) | 2,000 kg (2 tonnes) |
| Wire rope diameter | 11–14 mm, 6×19 or 6×37 IWRC |
| Drum rope capacity | 60–200 m depending on drum width |
| Line speed (first layer) | 7–12 m/min |
| Motor rating | 3.0–5.5 kW |
| Power supply | 400 V 3-phase 50 Hz |
| Duty cycle | S3, 25–40% ED |
| Brake | Fail-safe electromagnetic disc, ≥125% rated load |
| Gearbox | Helical or worm reduction, oil bath |
| Ingress protection | IP54–IP55 |
| Machine mass | 180–350 kg |
| Foundation | Bolted to reinforced concrete plinth |
What a 2 Tonne Electric Winch Is Used For
- Ore hoisting from shafts 60–120 m
- Skip and cage haulage on inclines
- Heavy equipment installation underground
- Pump station and ventilation fan positioning
- Bulk sample recovery during exploration
Maintenance Schedule
Most premature failures in this equipment class trace back to a missed routine check rather than a design fault. The intervals below are a practical starting schedule; adjust them to your duty cycle and the manufacturer manual.
| Interval | Task |
|---|---|
| Every shift | Rope inspection over the full working length; verify brake holds and drum flanges are undamaged. |
| Weekly | Lubricate rope and sheaves; check fleet angle at the drum stays within 1.5° to prevent rope pile-up. |
| Monthly | Gearbox oil level and condition; inspect drum shaft bearings for play and temperature rise. |
| Quarterly | Brake lining measurement and air-gap reset; overload and emergency stop function test. |
| Annually | Certified 125% load test; non-destructive testing of drum shaft and structural welds. |
Frequently Asked Questions
When should I move from a 1 tonne to a 2 tonne winch?
When the loaded bucket or skip plus rope weight regularly exceeds about 700 kg, or when shaft depth passes 60 m. Rope self-weight becomes significant with depth. A 100 m length of 12 mm rope alone weighs around 50 kg, and that eats into available payload on a smaller machine.
What foundation does a 2 ton winch need?
A reinforced concrete plinth sized so the mass is at least three times the rated line pull, with cast-in anchor bolts. Bolting a 2 tonne winch to timber sleepers or unreinforced slab is a frequent failure mode: the machine walks under cyclic load and the rope fleet angle goes out of tolerance.
What is fleet angle and why does it matter?
Fleet angle is the angle between the rope leaving the drum and a line perpendicular to the drum axis. Beyond about 1.5° the rope piles unevenly, crushes lower layers and wears fast. It is set by the distance from drum to the first sheave, which is why sheave position is a design decision, not a site convenience.
Can a 2 tonne winch run on a generator?
Yes, but size the generator for starting current, not running current. A 5.5 kW direct-on-line motor draws six to seven times full-load current at start, so a 20–30 kVA set is a realistic minimum. A soft starter or variable-frequency drive reduces that substantially and is worth the cost where generator capacity is tight.
How deep can a 2 ton winch hoist?
Drum capacity typically allows 60–200 m of rope. The practical limit is set by payload after deducting rope self-weight and by whether the drum can spool that length without exceeding three or four layers, since each layer reduces available pull.
Supply and Delivery Across Tanzania
Bart Mining supplies 2 tonne electric winch and related equipment to mining operations throughout Tanzania, with primary coverage of the Lake Victoria Goldfields (Mwanza, Kahama, Geita, Shinyanga and Bukombe), alongside the Lupa Goldfields around Chunya and Mbeya, and delivery nationwide from Dar es Salaam.
Request a quotation
Need a 2 tonne electric winch specified for your site?
Tell us your duty, depth or throughput and available power supply. We will come back with a specification and price, and flag anything on site that needs to change to make it work.
